■ 基本信息
啟動子: | CMV |
復制子: | pUC |
終止子: | SV40 poly(A) signal,hGH poly(A) signal |
質粒分類: | 哺乳細胞，蛋白過表達載體 |
質粒大小: | 6362bp |
原核抗性: | Amp |
真核抗性: | G418 |
克隆菌株: | DH5a |
培養條件: | 37度 |
表達宿主: | 哺乳細胞 |
誘導方式: | 無須誘導，瞬時表達 |
5'測序引物:
| CMV-F：CGCAAATGGGCGGTAGGCGTG
|
3'測序引物: | hGH-PA-R:CCAGCTTGGTTCCCAATAGA |
■ 質粒屬性
質粒宿主: | 哺乳細胞 |
質粒用途: | 蛋白表達 |
片段類型: | ORF
|
片段物種: | 空載體
|
原核抗性: | Amp |
真核抗性: | G418
|
熒光標記: |
|
■ 質粒簡介
The p3XFLAG-CMV-13 Expression Vector is a 6.3kb derivative of pCMV5 used to establish expression of transient or unstable C-terminal 3XFLAG fusion proteins in mammalian cells. The vector encodes three adjacent FLAG epitopes (Asp-Tyr-Lys-Xaa-Xaa-Asp) downstream of the multiple cloning region. This results in increased detection sensitivity using ANTI-FLAG M2 antibody. The promoter-regulatory region of the human cytomegalovirus drives transcription of FLAG-fusion constructs. The preprotrypsin leader sequence precedes the FLAG sequence. The aminoglycoside phosphotransferase II gene (Neo) confers resistance to aminoglycosides such as G 418, allowing for selection of stable transfectants. p3XFLAG-CMV-13 Expression Vector is a shuttle vector for E. coli and mammalian cells. Efficiency of replication and genomic integration is optimal when using an SV40 T antigen-expressing host, such as COS cells.
質粒只保證關鍵序列正確，不保證表達效果。

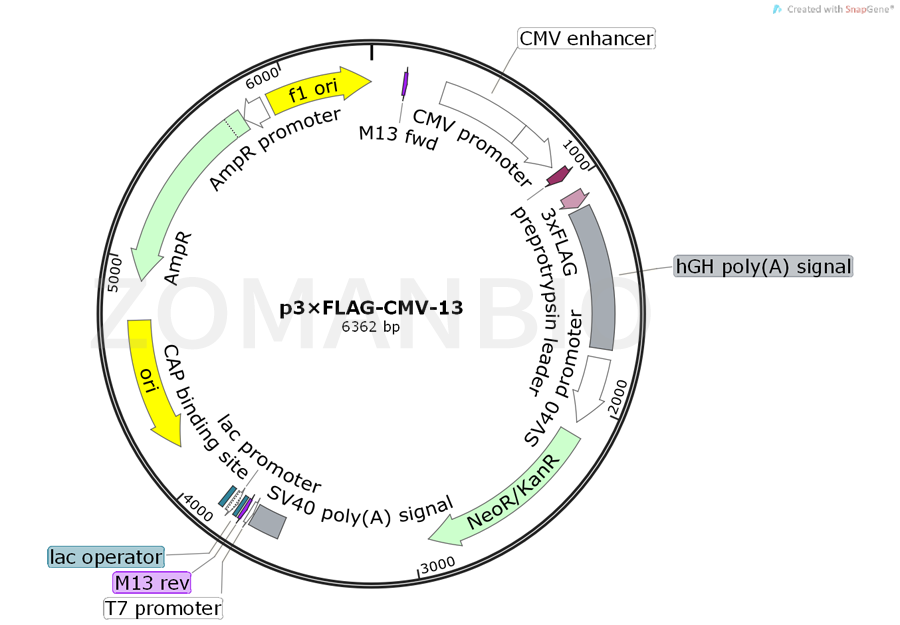

■ 質粒圖譜
■ 質粒序列
質粒序列請下載：
ZK380p3×FLAG-CMV-13哺乳表達質粒.txt
