■ 基本信息
啟動子: | CMV |
復制子: | pUC |
終止子: | SV40 poly(A) signal |
質粒分類: | 哺乳細胞，熒光蛋白報告載體 |
質粒大小: | 5264bp |
原核抗性: | Kan |
真核抗性: | G418 |
克隆菌株: | DH5a |
培養條件: | 37度 |
表達宿主: | 哺乳細胞 |
誘導方式: | 無須誘導，瞬時表達 |
5'測序引物:
| CMV-F：CGCAAATGGGCGGTAGGCGTG
|
3'測序引物: | 根據序列設計引物 |
■ 質粒屬性
質粒宿主: | 哺乳細胞 |
質粒用途: | 蛋白表達 |
片段類型: | ORF
|
片段物種: | 空載體
|
原核抗性: | Kan |
真核抗性: | G418
|
熒光標記: | 紅色
|
■ 質粒簡介
pIRES2-DsRed-Express contains the internal ribosome entry site (IRES; 1, 2) of the encephalomyocarditis virus (ECMV) between the MCS and a mutant of the Discosoma sp. red fluorescent protein DsRed-Express coding region (3–5). This permits both the gene of interest (cloned into the MCS) and the DsRed-Express gene to be translated from a single bicistronic mRNA. pIRES2-DsRed-Express is designed for the efficient selection by flow cytometry of transiently transfected mammalian cells expressing DsRed-Express and the protein of interest. This vector can also be used to express DsRed-Express alone or to obtain stably transfected cell lines without timeconsuming drug and clonal selection.
質粒只保證關鍵序列正確，不保證表達效果。

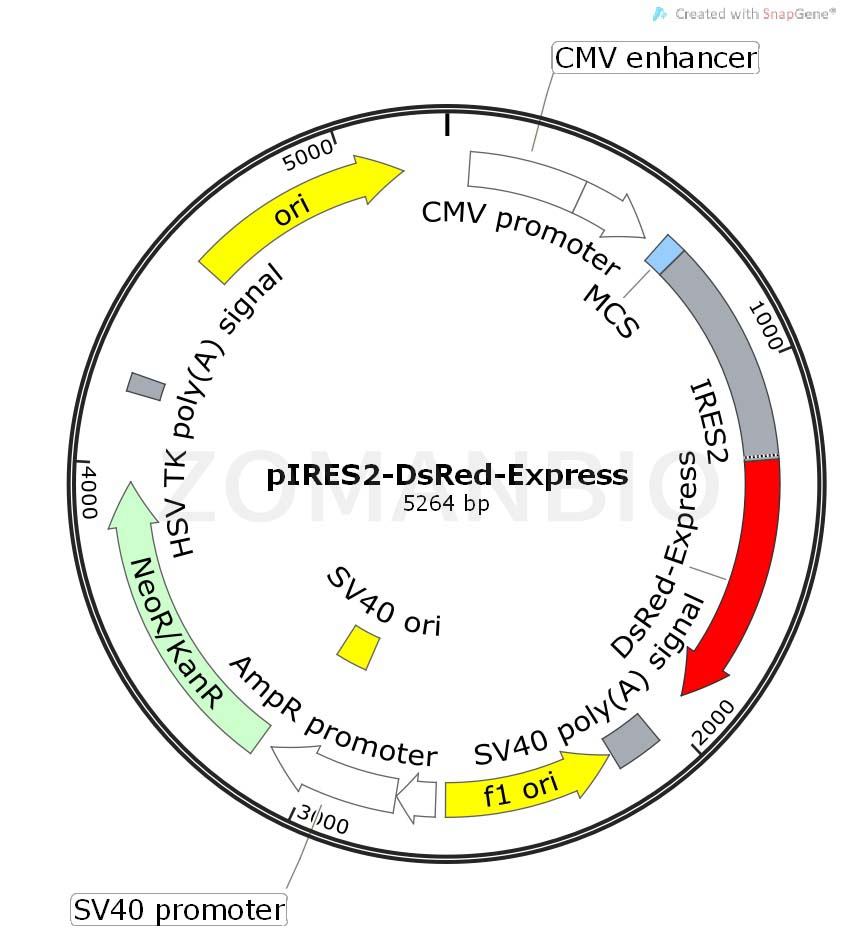

■ 質粒圖譜
■ 質粒序列
質粒序列請下載：
ZK435pIRES2-DsRed-Express哺乳熒光質粒.txt
