■ 基本信息
啟動子: | CMV |
復制子: | pUC |
終止子: | SV40 poly(A) signal |
質粒分類: | 哺乳細胞，熒光蛋白報告載體 |
質粒大小: | 4691bp |
原核抗性: | Kan |
真核抗性: | G418 |
克隆菌株: | DH5a |
培養(yǎng)條件: | 37℃ |
表達宿主: | 哺乳細胞 |
誘導方式: | 無須誘導，瞬時表達 |
5'測序引物:
| CMV-F：CGCAAATGGGCGGTAGGCGTG
|
3'測序引物: | 根據(jù)序列設計引物 |
■ 質粒屬性
質粒宿主: | 哺乳細胞 |
質粒用途: | 蛋白表達 |
片段類型: | ORF
|
片段物種: |
|
原核抗性: | Kan |
真核抗性: | G418
|
熒光標記: |
|
■ 質粒簡介
pDsRed-Monomer-N1 is a mammalian expression vector that encodes DsRed-Monomer (DsRed.M1), a monomeric mutant derived from the tetrameric Discosoma sp. red fuorescent protein DsRed. DsRed-Monomer contains forty-fve amino acid substitutions (listed on page 2). When DsRed-Monomer is expressed in mammalian cell cultures, red fuorescent cells can be detected by either fuorescence microscopy or fow cytometry 12–16 hr after transfection (DsRed-Monomer excitation and emission maxima = 557 nm and 592 nm, respectively). The DsRed-Monomer coding sequence is human codon-optimized for high expression in mammalian cells.
質粒只保證關鍵序列正確，不保證表達效果。

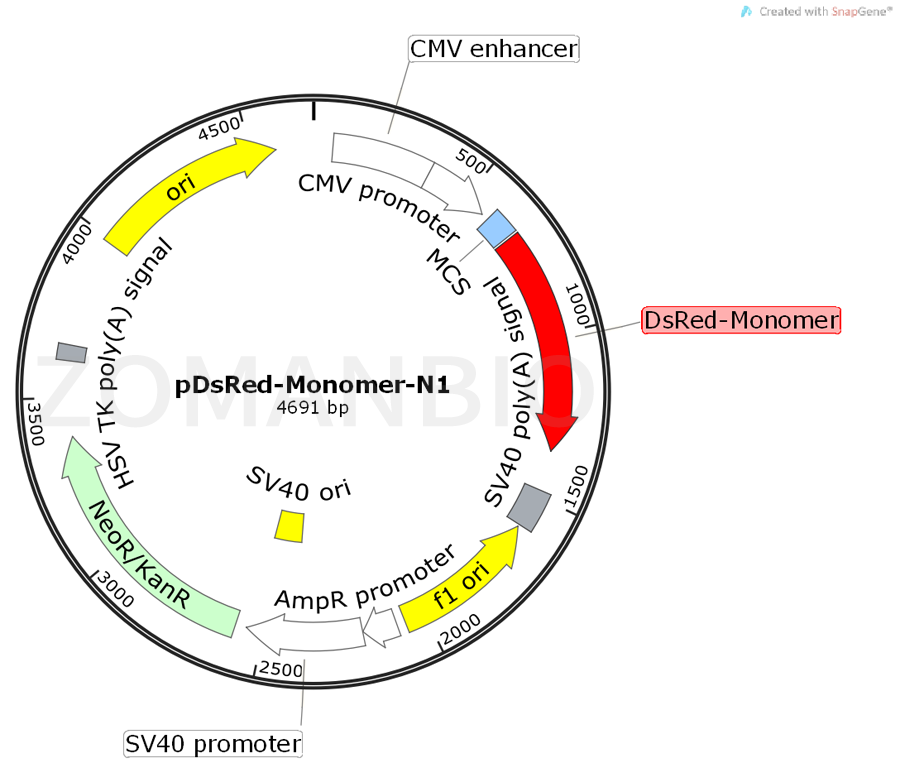

■ 質粒圖譜
■ 質粒序列
質粒序列請下載：
ZK439pDsRed-Monomer-N1哺乳熒光質粒.txt
