■ 基本信息
啟動子: | CMV |
復制子: | pUC |
終止子: | SV40 poly(A) signal |
質粒分類: | 哺乳細胞，熒光蛋白報告載體 |
質粒大小: | 4715bp |
原核抗性: | Kan |
真核抗性: | G418 |
克隆菌株: | DH5a |
培養條件: | 37度 |
表達宿主: | 哺乳細胞 |
誘導方式: | 無須誘導，瞬時表達 |
5'測序引物:
| CMV-F：CGCAAATGGGCGGTAGGCGTG
|
3'測序引物: | Sv40-polyA-R：GAAATTTGTGATGCTATTGC |
■ 質粒屬性
質粒宿主: | 哺乳細胞 |
質粒用途: | 蛋白表達 |
片段類型: | ORF
|
片段物種: |
|
原核抗性: | Kan |
真核抗性: | G418
|
熒光標記: |
|
■ 質粒簡介
pTagBFP-N is a mammalian expression vector encoding blue fluorescent protein TagBFP. The vector allows generation of fusions to the TagBFP N-terminus and expression of TagBFP fusions or TagBFP alone in eukaryotic (mammalian) cells.
TagBFP codon usage is optimized for high expression in mammalian cells (humanized) [Haas et al., 1996]. To increase mRNA translation efficiency, Kozak consensus translation initiation site is generated upstream of the TagBFP coding sequence [Kozak, 1987]. Multiple cloning site (MCS) is located between PCMV IE and TagBFP coding sequence。

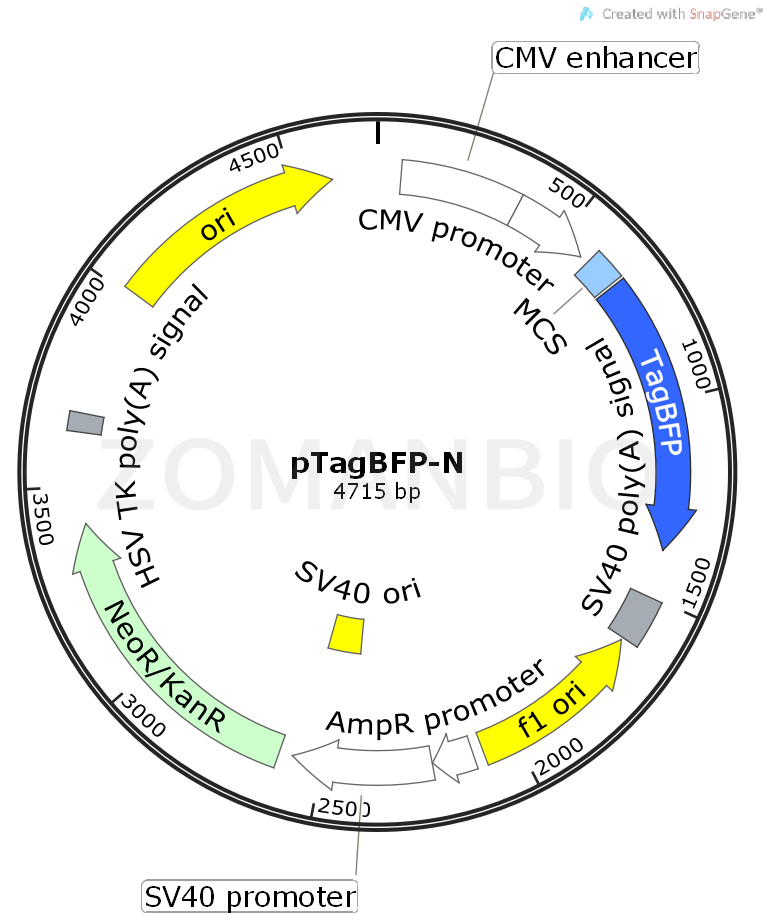

■ 質粒圖譜
■ 質粒序列
質粒序列請下載：
ZK456pTagBFP-N哺乳熒光質粒.txt
