■ 基本信息
啟動子: | CMV |
復制子: | pUC |
終止子: | SV40 poly(A) signal |
質粒分類: | 哺乳細胞，熒光蛋白報告載體 |
質粒大小: | 4731bp |
原核抗性: | Kan |
真核抗性: | G418 |
克隆菌株: | DH5a |
培養(yǎng)條件: | 37度 |
表達宿主: | 哺乳細胞 |
誘導方式: | 無須誘導，瞬時表達 |
5'測序引物:
| CMV-F：CGCAAATGGGCGGTAGGCGTG
|
3'測序引物: | Sv40-polyA-R：GAAATTTGTGATGCTATTGC |
■ 質粒屬性
質粒宿主: | 哺乳細胞 |
質粒用途: | 蛋白表達 |
片段類型: | ORF
|
片段物種: |
|
原核抗性: | Kan |
真核抗性: | G418
|
熒光標記: |
|
■ 質粒簡介
pECFP-C1 encodes an enhanced cyan fluorescent variant of the Aequorea victoria green fluorescent protein gene (GFP). The ECFP gene contains six amino acid substitutions. The Tyr-66 to Trp substitution gives ECFP fluorescence excitation (major peak at 433 nm and a minor peak at 453 nm) and emission (major peak at 475 nm and a minor peak at 501 nm) similar to other cyan emission variants (1–3). The other five substitutions (Phe-64 to Leu; Ser-65 to Thr; Asn-146 to Ile; Met-153 to Thr; and Val-163 to Ala) enhance the brightness and solubility of the protein, primarily due to improved protein-folding properties and efficiency of chromophore formation (2, 4, 5).

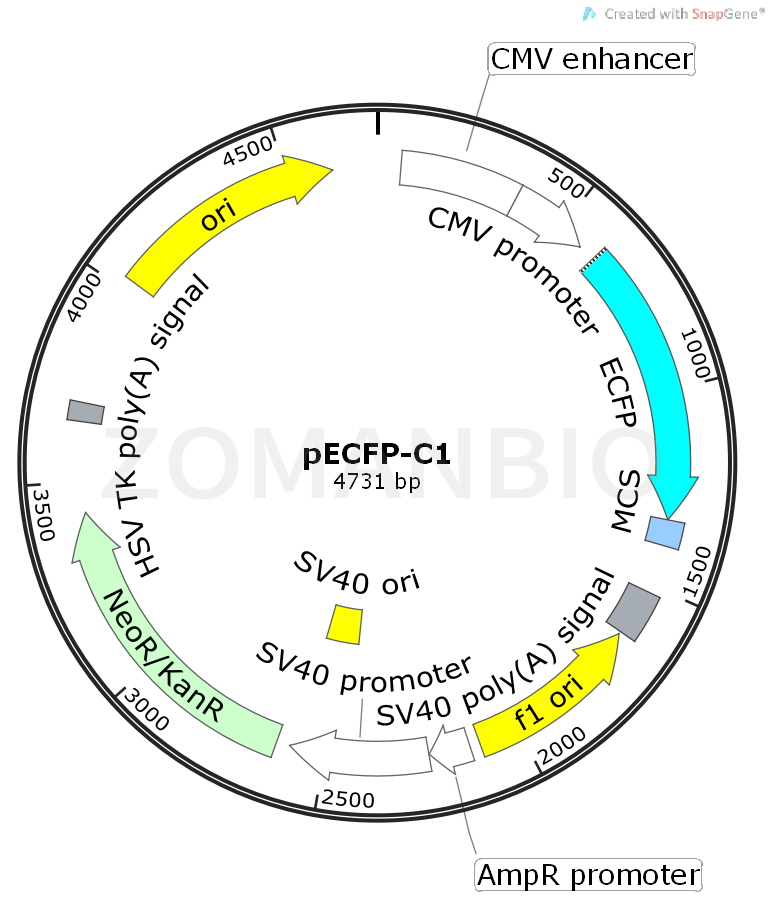

■ 質粒圖譜
■ 質粒序列
質粒序列請下載：
ZK460pECFP-C1哺乳熒光質粒.txt
